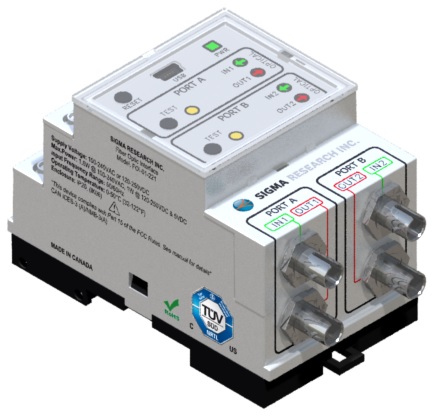

Fiber Optic Interface

FOI-01-221

The Fiber Optic Interface was primarily designed to interface Fiber Optic Switches (FiberSwitch™) to electrical circuits. It provides a safe optical signal that can be sent into hazardous areas, as required by IEC 60079-28. Up to 32 FOI's can be connected in a network over RS485 (Modbus RTU) or Ethernet (Modbus TCP/IP) allowing 64 Fiber Optic Switches (2 switches/FOI) to communicate with a master over the network.


- Equipped with two optical I/O, and two electrical I/O.

- Uses standard multimode fiber optic cable and ST connectors.

- Low power consumption (<2.0W).

- Accepts a wide range of power supply voltages.

- Performs fiber optic loop tests.

- Programmable to suit many applications (OptiLink and OptiNet software included).

- Uses standard Mini Type B USB connector for computer connectivity.

- Networkable over RS485 (Modbus RTU), also provides support for networkable fiber optic switches (FiberSwitch™) over Modbus RTU(RS485), or Modbus TCP/IP(Ethernet).

- Uses high efficient VCSEL diodes for the optical outputs.

- Generates alarm for interface malfunction and power loss.

- Electrical inputs are ESD protected (4kV contact discharge, 8kV air discharge as per IEC 61000-4-2.

  • • Supply Voltage:  100-240VAC or 120-250VDC

  • • Input Frequency Range (for AC input):  50/60Hz

  • • Operating Temperature Range:  0-50°C (32-122°F)

  • • Fiber Type:  Multimode 62.5/125μm, OM-1

  • • Enclosure:  IP20 / NEMA Type 1

  • • IEC 60079-28:  [Ex op is Ma] I (Mining)    ANSI/ISA 60079-28:  [AEx op is Ma] I (Mining)
  •          [Ex op is T6 Ga] IIC (Gas)               [AEx op is T6 Ga] IIC (Gas)
  •          [Ex op is T60°C Da] IIIC (Dust)            [AEx op is T60°C Da] IIIC (Dust)

  • • NEC 500, 505, 506 (CEC):  [Cl. I, II ,III, Div.1, 2/Zone 0/Zone 20]
  •               Group A, B, C, D, E, F, G, Temp. Code T6

  • • Contacts:  1 Form A (NO contact), 5A @ 240 VAC continuous

  • • Software:  OptiLink, OptiNet(Modbus RTU/TCP Master)

  • • Dimensions:  99.5(3.91")L x 52.5(2.06")W x 58.0(2.28")H

  • • Weight:  185g(6.5oz)

Please refer to the support page for all documentation:

  • Manuals
  • Schematics
  • Certifications

Documentation
    FiberOpticInterface Fiber Optic Interface Promotional Flyer
