FiberSwitch™

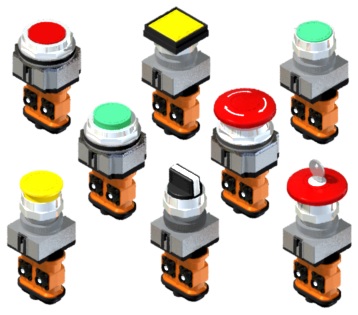

FOS-01The first fiber optic switch for hazardous areas. It opens up new fields of application for fiber optics as well as introducing a new method of controlling electrical devices. The FiberSwitch™ outperforms electrical switches in many applications such as remote control over long distances in hazardous locations. Available with a variety of operators.
Customize
- Absolutely safe for installation in hazardous areas, as it eliminates the ignition source.
- Immune to EMI/RFI and high voltage power lines.
- Optical signal eliminates electrocution and fire hazard.
- Low overall installation cost as fiber optic cable is less costly than copper cable.
- Can be installed up to 2.5Km away from equipment it controls.
- Unique fail safe feature that opens its NC contacts if the fiber optic contact block comes off the operator.
- Stackable optical contact blocks up to two tiers.
- Allows for multiple Fiber Optic Switches to be daisy chained.
- • Max. Distance: 2.5Km @ 850nm, 7Km @ 1310nm
- • Attenuation: <4dB
- • Wavelength: 850nm, 1310nm
- • Fiber Type: Multimode 62.5/125μm, FC connector
- • Optic Contact Types: NO, NC, NO early make, NC late break
- • Temperature Range: -25°C - (+60°C)
- • Simple Apparatus: AEx op is I Ma (Mining),
- AEx op is IIC T6 Ga (Gas),
- AEx op is IIIC T60°C Da (Dust)
- • NEC 500, 505, 506 (CEC): Class I, II, III, Div. 1, 2
- (Zone 0, 20)
- Group A, B, C, D, E, F, G, Temp. Code T6
FiberSwitch™ Promotional Flyer
Right Click Images >>> Save Link As >>> Open With Adobe Reader To View 3D PDF
22mm Pushbutton
22mm Emergency Stop
22mm Selector Switch
30mm Pushbutton
30mm Emergency Stop
30mm Selector Switch
Double Contact Block
