Technical Support


In order to facilitate an easy implementation of our products into customers' systems, Sigma Research provides the following support:

•  Cost Analysis - new technology vs. existing

•  Technical Documentation - schematic & wiring diagrams, installation details, specifications, layout drawings, user manuals and datasheets.

•  Pre-certification testing in accredited laboratories

•  Project management

•  Certification assistance (TÜV, UL, CSA, CE, etc).

Documentation


  • Fiber Optic Interface
Fiber Optic Interface

  • FiberSwitch™
FiberSwitch™

    FOI Operation Manual FOI Operation Manual
FOI Datasheet FOI Datasheet
    FOI Application Manual FOI Application Manual
Contact us to request FOI schematics.
• TUV SUD (IEC 61010-1)
• FCC
• ICES-003
• Laser Safety (IEC 60825-1)
• Explosive Atmospheres (IEC 60079-28 and ANSI/ISA 60079-28)

Test reports are available upon request.

Right Click Image   >>>   Save Link As   >>>   Open With Adobe Reader To View 3D PDF


    Fiber Optic Interface Fiber Optic Interface

    FOS Operation Manual FOS Operation Manual
FOS Datasheet FOS Datasheet
Refer to Fiber Optic Interface certifications.

The FiberSwitch™ is rated as a "simple apparatus" and an accessory to the Fiber Optic Interface.

Right Click Images   >>>   Save Link As   >>>   Open With Adobe Reader To View 3D PDF


    FiberSwitch™ 22mm Pushbutton
FiberSwitch™ 22mm
Emergency Stop
    FiberSwitch™ 22mm
    Selector Switch
    FiberSwitch™ 30mm Pushbutton
FiberSwitch™ 30mm
Emergency Stop
    FiberSwitch™ 30mm
    Selector Switch
    FiberSwitch™ Double
    Contact Blocks

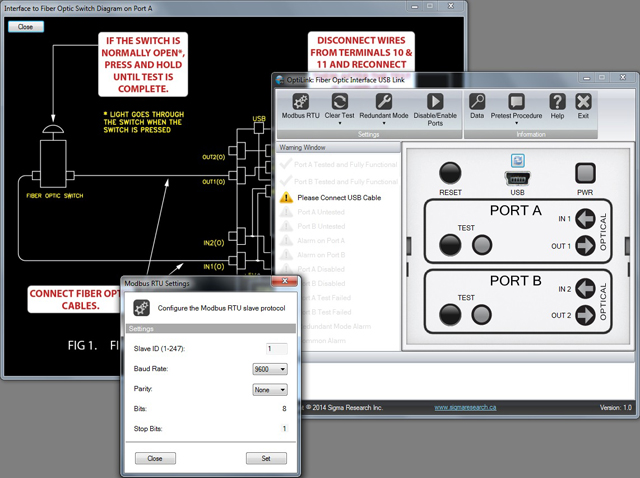

OptiLink Software


OptiLink Software

Overview & Features

•  Easy to use graphical interface resembling the front of the Fiber Optic Interface


•  Built with .NET Framework 4


•  No installation required, run the .exe and connect the USB cable to the Fiber Optic Interface


•  Allows customization and data retrieval from the Fiber Optic Interface


The OptiLink Software allows you to get a real-time reading of the status of the optical ports on the FOI. Values such as temperature, voltage, modbus information and other modes can be read.


Testing of the ports can also be done through the software, with feedback messages displaying success or failure and schematics depicting how to properly test. Modbus settings and the Redundant Mode can only be set through this software.

Specifications

Operating System: Windows XP or later

.NET Framework: 4.0 or later

Memory: 256MB or more

Graphics: 1280x1024 or higher resolution is recommended

Hard-disk Space: 100MB or more

Other Requirements: Available USB port

Download

Contact us for download information.

Manual

Contact us to request manual.

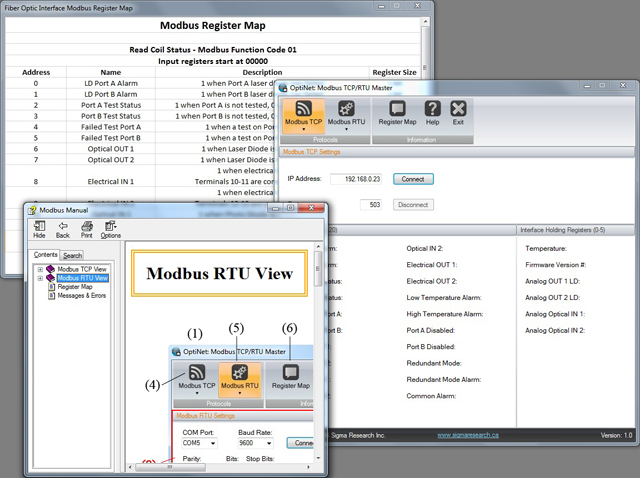

OptiNet Software


OptiNet Software

Overview & Features

•  Easy to use Modbus RTU/TCP Master that communicates with the Fiber Optic Interface


•  Built with .NET Framework 2


•  No installation required, run the .exe and establish a valid connection to the Fiber Optic Interface


•  Allows for data retrieval from the Fiber Optic Interface


The OptiNet Software allows you to get a real-time reading of the status of the optical ports over a Modbus connection. Values such as temperature, voltage, modbus information and other modes can be read.


Specifications

Operating System: Windows XP or later

.NET Framework: 2.0 or later

Memory: 256MB or more

Graphics: 1280x1024 or higher resolution is recommended

Hard-disk Space: 100MB or more

Download

Contact us for download information.

Manual

Contact us to request manual.
